3D Model Juice

Visual model of a stackable juice bottle concept. Aimed towards engaging children to drink fruit juices. Creating a customisable experience.
MORE
3D

Award

Personally awarded winning UK Juice Category for an International competition issued by Petainer.

CAD

Drawings to show the overall structure both individually and combined.

MORE
CAD

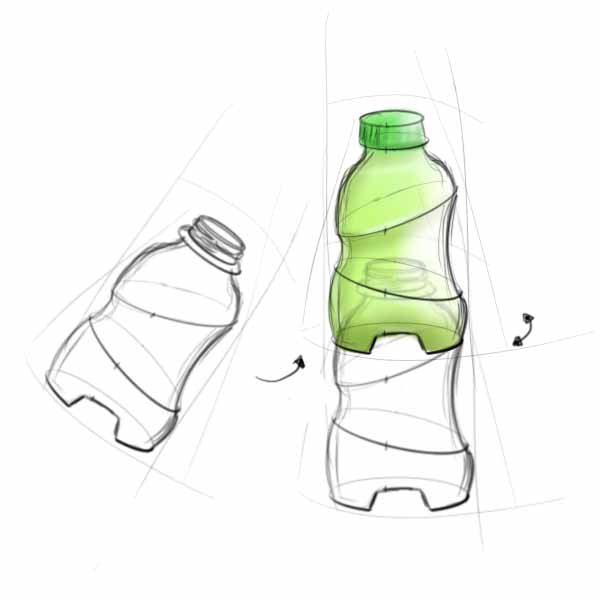

Sketch Demo

Starting sketch of idea to combine 2x250ml bottles to make a large 500ml bottle. Twist is the bottles don’t need to be the same flavour. Leaving fruit shake combinations down to the imagination of the customer.

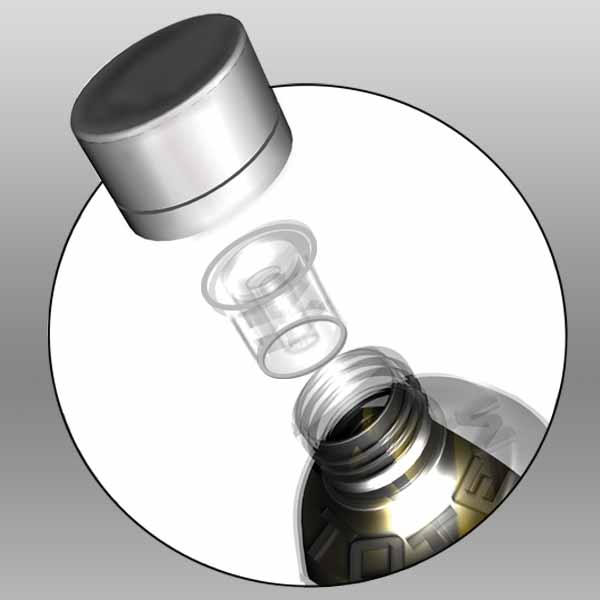

3D Exploded

Exploded visual model to show the piercing design to enable connection of two bottles.

MORE
3D

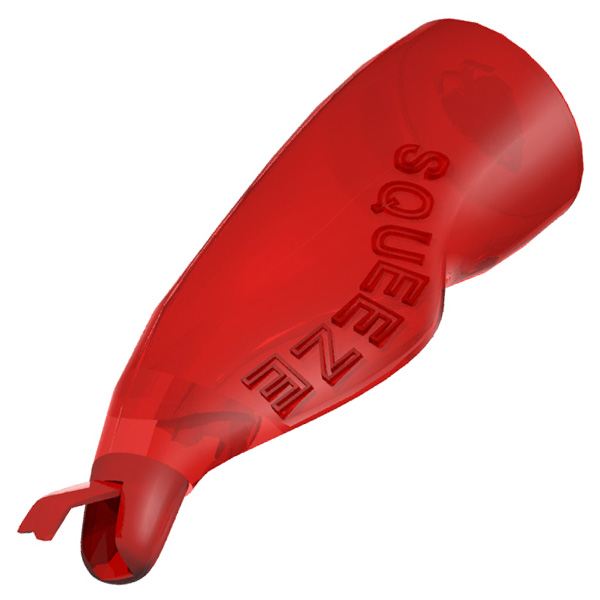

3D Model Jam

Petainer issued a food related bottle competition. This is a visual model for a squeezable Jam bottle with a spreader nozzle.
MORE
3D

3D Model Jam

Visual model of standing Squeezable Jam Bottle.

MORE
3D
